REL R205 SERIES Acoustics Subwoofer

REL R205 SERIES Acoustics Subwoofer

REL creates a complete line of high-performance subwoofers for use in dual-channel audio and home theater systems. REL subwoofers can be driven by a pre-amplifier, an amplifier, or both (which is important in many home theater installations). They go extremely well with a wide variety of speakers.

The REL R205 is not a traditional subwoofer, but rather a true sub-bass system. The REL R series is designed to increase the performance of "full range" speaker systems and provide a linear response below 20Hz. Properly covered, it will withstand a lot of adverse conditions. Unique for REL are the connection options.

CHARACTERISTICS

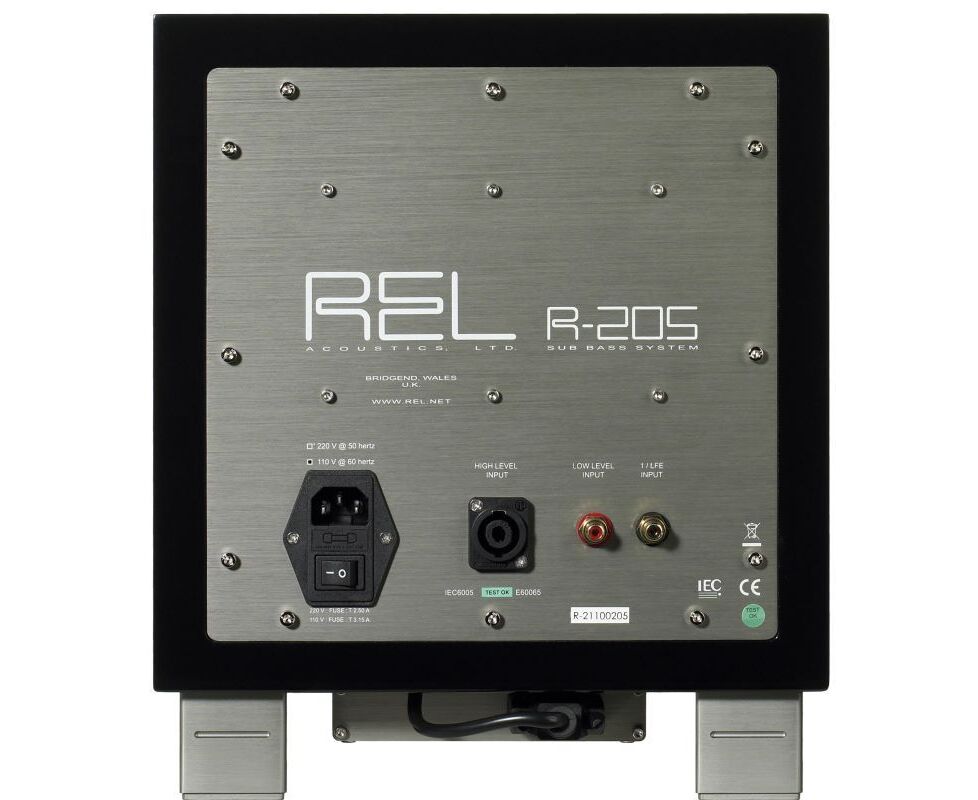

• Neutrik Speakon Input Connections - High-Level Phono - LFE Phono - Low Level
• Switching Amplifier type
• Input resistance
  • Two high quality 150K Ohms channels
  • 1 / LFE33K Ohms level
  • Low level 10K Ohms
• Input sensitivity
  • 1 / low level LFE 40dB
  • High level 22dB
• 10 "(254 mm) drive unit
• Power output power 200 Watts RMS
• PROTECTION (Over Current, Over Voltage)
• Network fuses 2.50 Amp semi delay for 230 Volts
• Dimensions WxHxD 11.5 x 13.25 x 12.5 inches
• (Including legs, controls & grille) 292.1 X 336.5 X 317.5 mm
• Net weight 30.5 lbs / 13.6 kg
• Gross weight 34.8 lbs / 15.8 k
