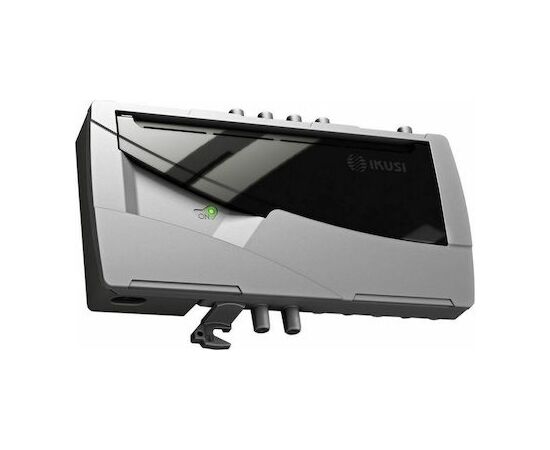

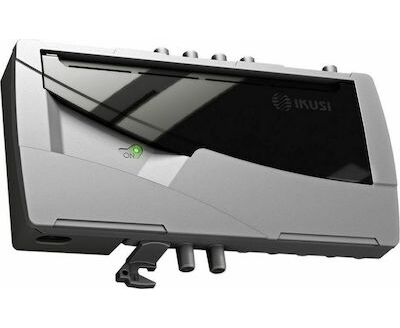

IKUSI NBS-604-C48 Ref. 3567 Central Amplifier with 4 inputs. (BI / FM-BIII / DAB-2xUHF) - 1 exp. RF 39dB / 112dBμV LTE 5G

IKUSI NBS-604-C48 Ref. 3567 Central Amplifier with 4 inputs. (BI / FM-BIII / DAB-2xUHF) - 1 exp. RF 39dB / 112dBμV LTE 5G

Central Installation Amplifier with 4 inputs (BI / FM-BIII / DAB-2xUHF) - 1 RF output, Gain 39dB with 112dBμV and built-in LTE filter for 5G frequency rejection of IKUSI, NBS-604-C48 Ref. 3567. High power amplifier, suitable for large installations. Frequency band (UHF): 470-694 MHz. Gain: 39dB. Output signal level: 112dBμV. Input / output return loss: 10dB. Consumption: 5W. Dimensions: 230 x 145 x 45mm.

Also with a Jumper selector (bridge), you can choose whether it will give you 12V or 24V DC voltage from the UHF input to drive antenna dipole preamplifiers.

Technical Features:

• Inputs: 4 (BI / FM - BIII / DAB - 2xUHF)
• MHz frequency range: BI / FM: 45-112, BIII / DAB: 174-240, 2xUHF: 470-694
• Profit dB: BI / FM: 36 BIII / DAB: 36 2xUHF: 39
• Profit adjustment :: 0 - 18
• Response level dB: BI / FM: ± 2 BIII / DAB: ± 2 2xUHF: ± 1.5
• Outputs: 1
• Output test: dB -30
• RF TV output level: BI / FM: 112 BIII / DAB: 112 2xUHF: 112
• Noise number dB: BI / FM: 6 BIII / DAB: 6 2xUHF: 8
• Input / output return loss dB: 10
• Voltage / current preamplifier mains: UHF2: 12-24V 100 mA
• Supply voltage VAC 110-240 (+ 10% -15%)
• Consumption W 5
• Dimensions (width x height x depth) mm 230 x 145 x 45
• EAN / BARCODE: 8435136435679
• Product Code (SKU): 600087
• Factory Code: 08666
• Country of Origin SPAIN
• Delivery 1-3 working days depending on availability
• The product has a factory authenticity tape
• 2 years warranty of official Greek Representation
• For Phone, Order call 210-8838004 and mention the Product Code or EAN code
• All prices displayed in our online store include VAT.
• *CAUTION! FOR RECEIPTS FROM THE STORE SHOULD HAVE BEEN PREVIOUS BY PHONE CONTACT - ORDER OR E-MAIL
• Available upon request
• The photos are indicative and may differ from the final product
